High load-bearing capacity
1,000 kN per leg with a safety factor of 2
-
Simple Connections
Efficient assembly with only 2 standard connections
-
Highly versatile
Flexible configuration of horizontals and verticals to facilitate all dimensions
-
Compatible
Can work with other PERI systems for access and safety requirement
Applications
-

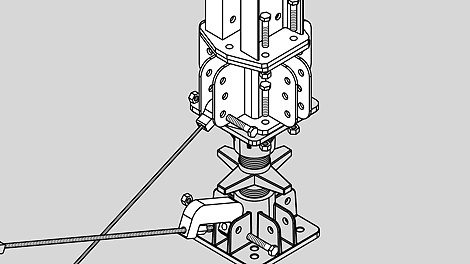

![Efficient assembly with only 2 standard connections]( "Efficient HDS Connections")
Efficient HDS ConnectionsEfficient assembly with only 2 standard connections
-

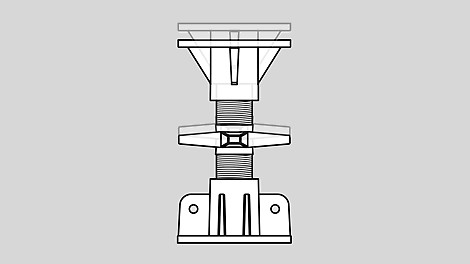

![Extension between 410 - 620mm is realized to simplifies striking process]( "Adjustable Jack with 1,000kN capacity")
Adjustable Jack with 1,000kN capacityExtension between 410 - 620 mm is possible to simplify the striking process
-

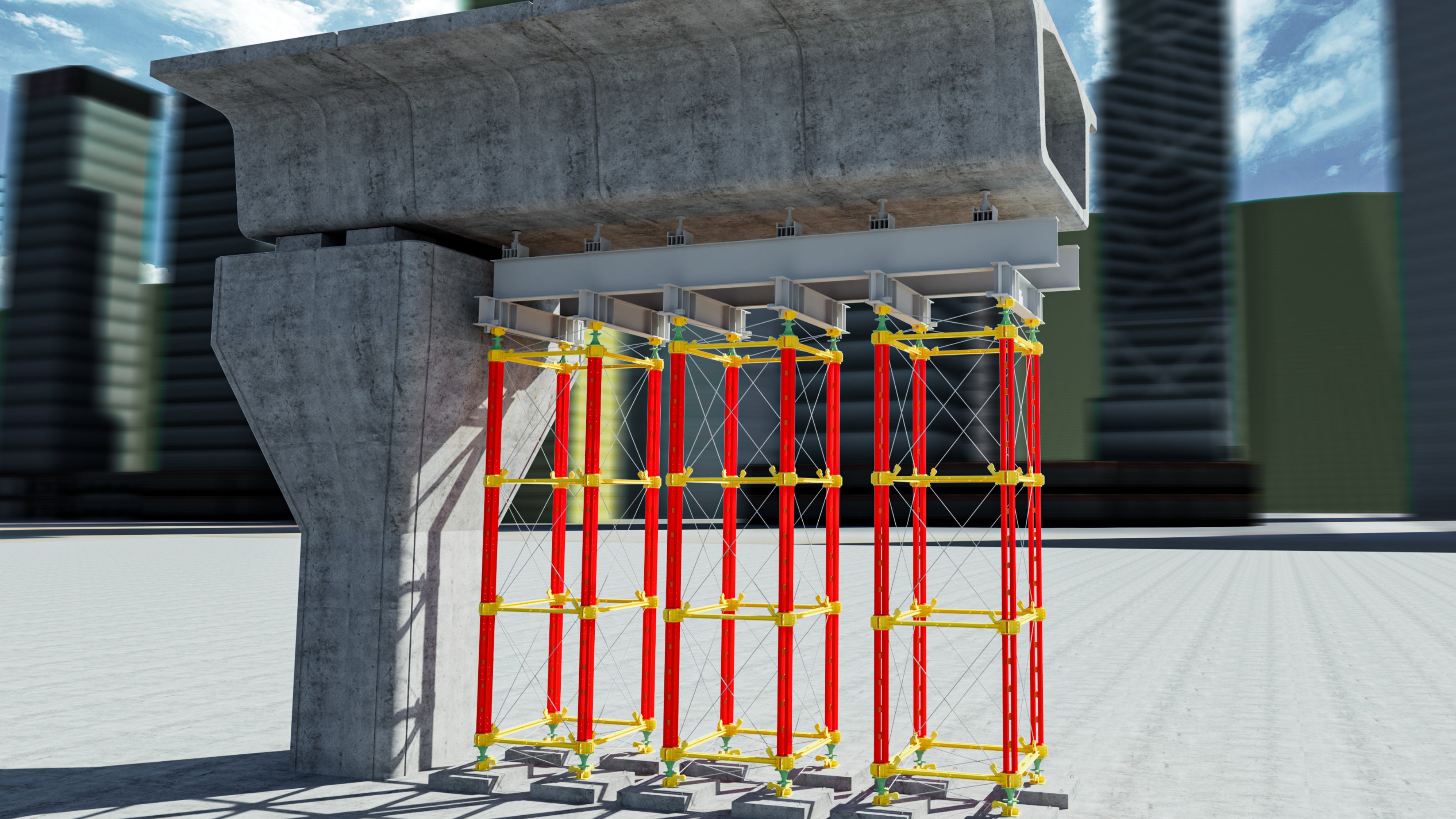

![Highly suitable for the construction of pre-cast segmental bridges with high efficiency]( "Pre-cast bridge construction")
Pre-cast bridge constructionA very efficient option for the construction of pre-cast segmental bridges
-
Watch the video to find out more
Product Data Sheet
Supplementary holes
on HDS Standards for accessories
Additional restraint
on HDS Standards for high-load bearing capacity
Compatibility
HDS Screw Jack is compatible as both top and bottom connection with extension between 410 - 620 mm
Dimensions
Ground plan is available in dimension of 1.5 m up to 4.5 m in 50 cm increments
