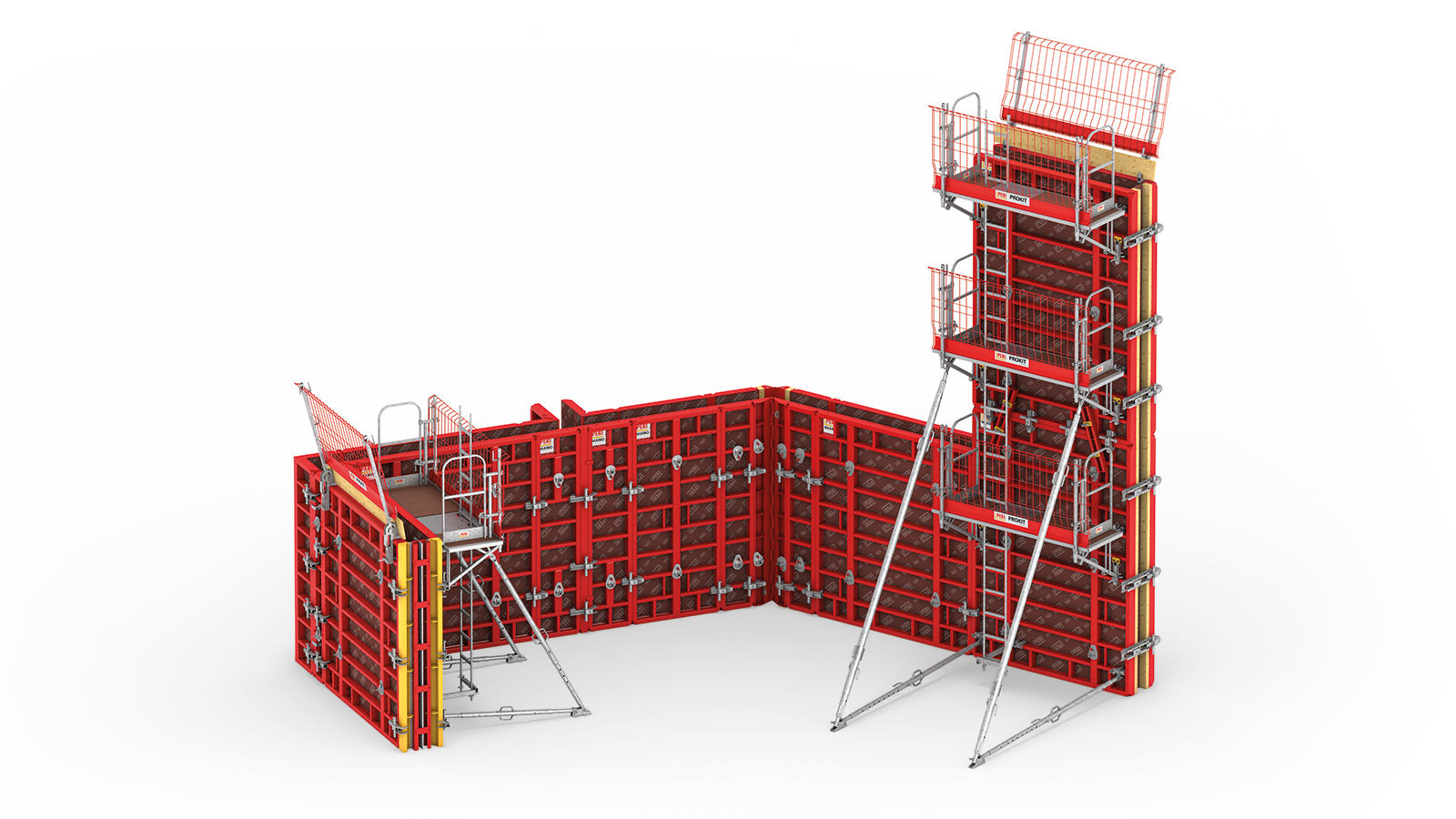

A picture showcasing PERI's MAXIMO wall formwork, an effective system for constructing walls.

MAXIMO Wall Panel Formwork

The perfect combination of speed, cost-control and concrete finish


MAXIMO wall formwork is one of the most capable panel systems available.  With the highest quality production, the system will perform year after year on site giving you the maximum return on investment.

Costs are controlled daily thanks to the single-sided tie system requiring less labour to install and dismantle.  The MX tie technology with one-sided tie installation also greatly accelerates formworking operations - with experience of the system on site showing up to 50% less time required.

A high quality concrete finish can be achieved with thanks to the centrally arranged tie points resulting in a regular joint and tie pattern both horizontally and vertically

  • Faster tie installation

    through the one-sided tie technology without spacer tubes and cones

  • Minimum of anchors

    through the optimized tie point arrangement

  • Improved concrete finish

    through the neat joint and tie arrangement

MAXIMO in action

  • Find out more
    Watch our latest video on MAXIMO

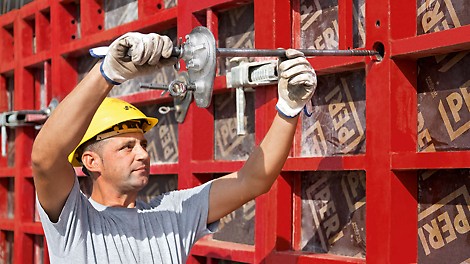

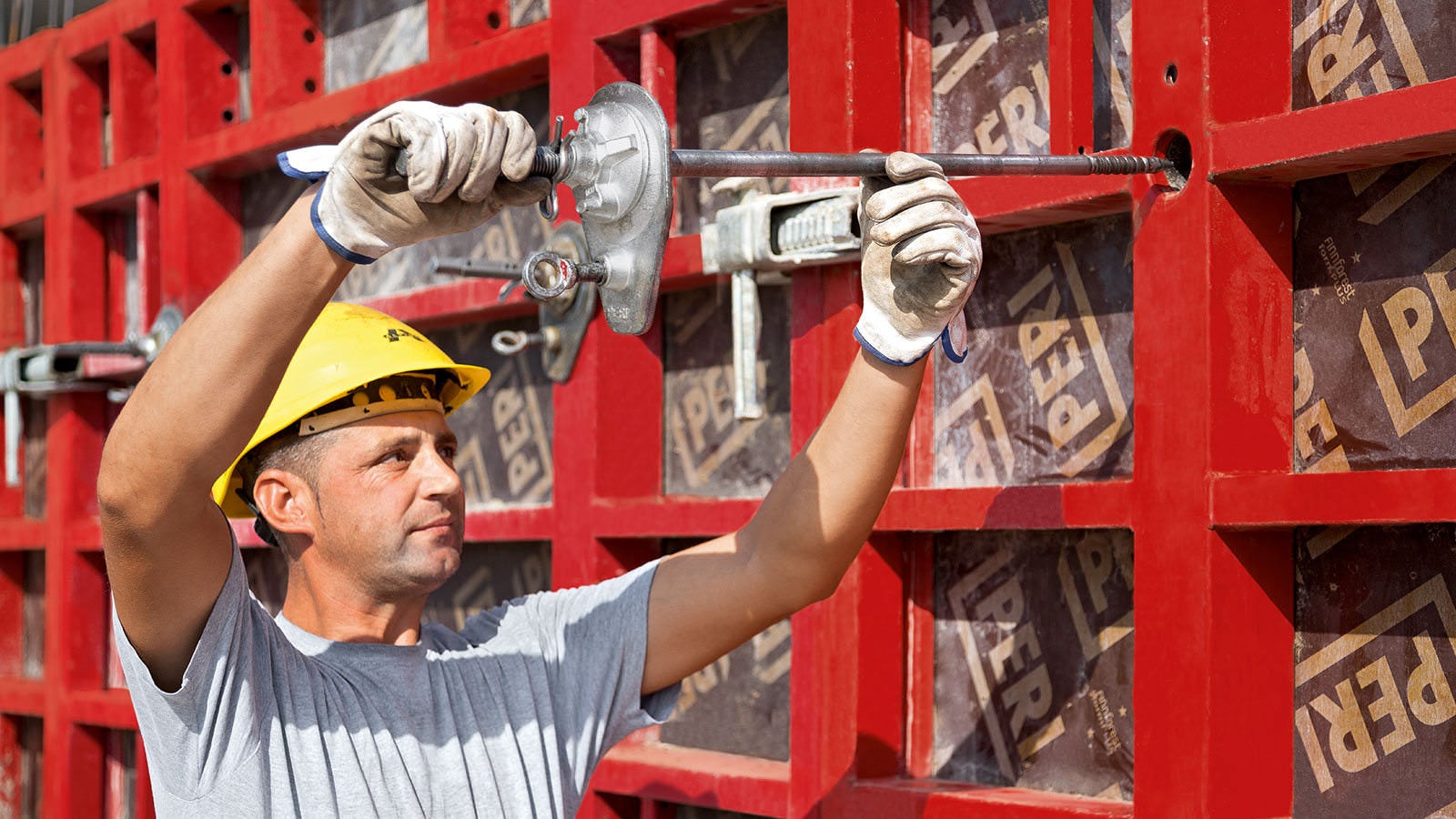

  • The special MX tie is installed from one side only and is used without spacer tubes and cones. As a result, both material requirements and costs are reduced as well as saving time.
    Faster tie installation, reduced materials

    The special MX tie is installed from one side only and is used without spacer tubes and cones. As a result, costs are controlled through reduced material requirements and time savings

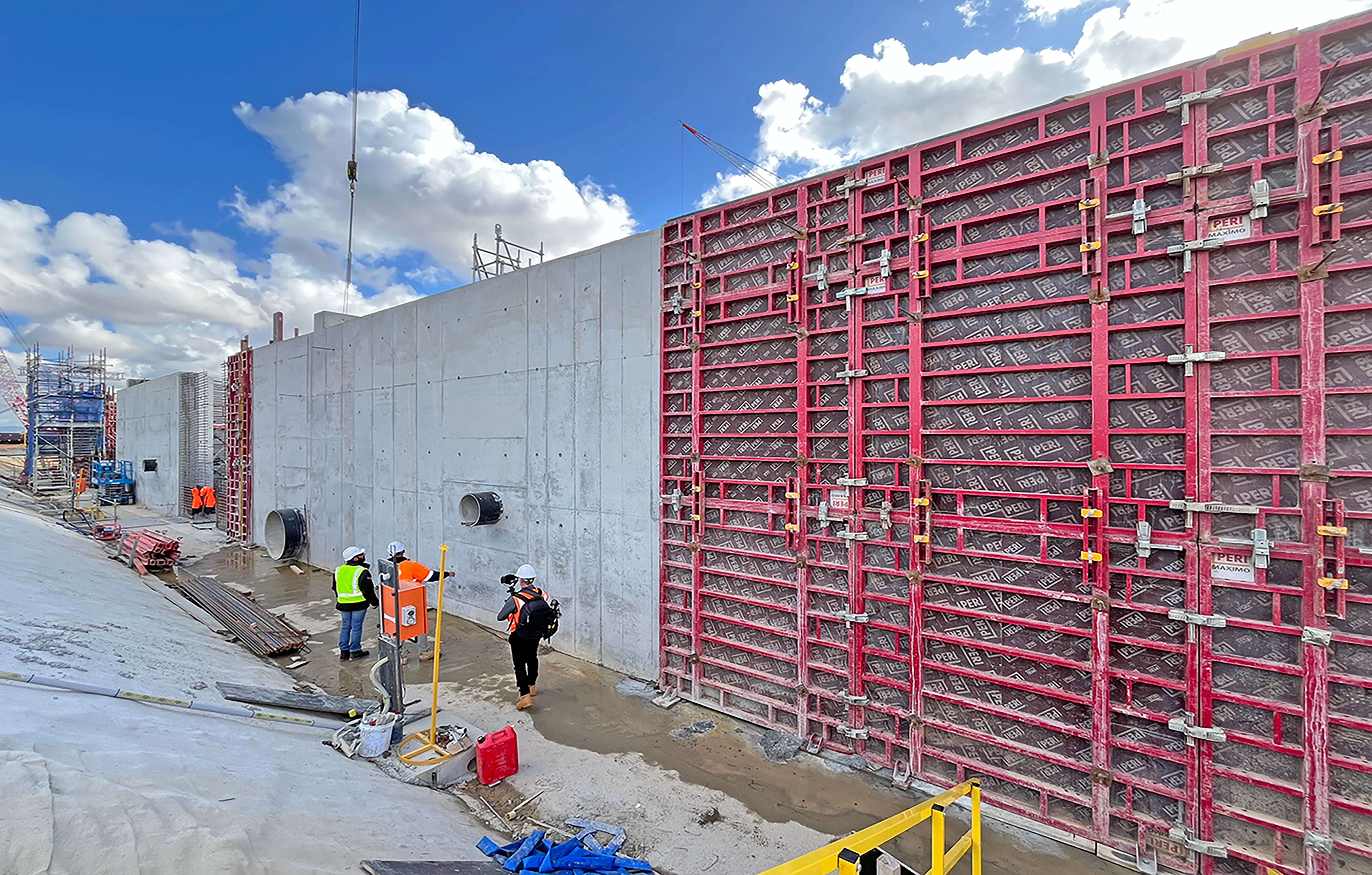

  • MAXIMO wall formwork
    Beautiful concrete finish

    Achieve a visually appealing and contemporary exposed concrete finish with the defined arrangement of individual panels and minimised unusued tie holes which can often result in concrete bleeding and impressions on the finished surface





Additional Benefits

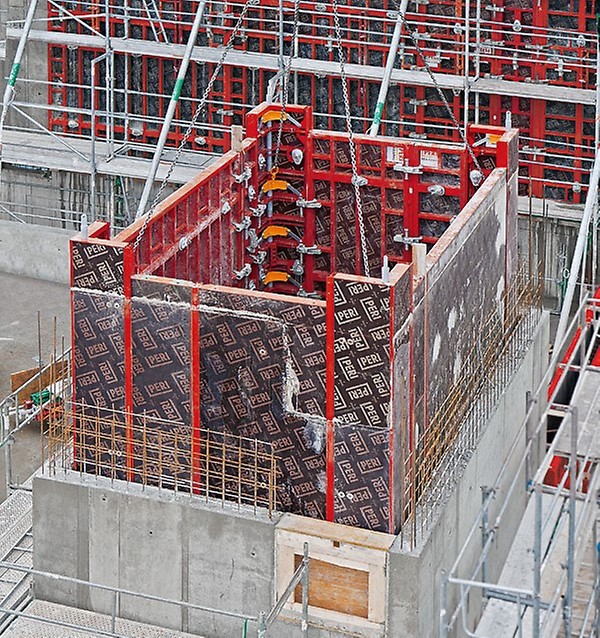

The MX Shaft Corner allows complete sets of shaft formwork to be moved quickly. Attaching and releasing is easily done from a safe position on the working level.
The MX Shaft Corner allows complete sets of shaft formwork to be moved quickly. Attaching and releasing is easily done from a safe position on the working level.

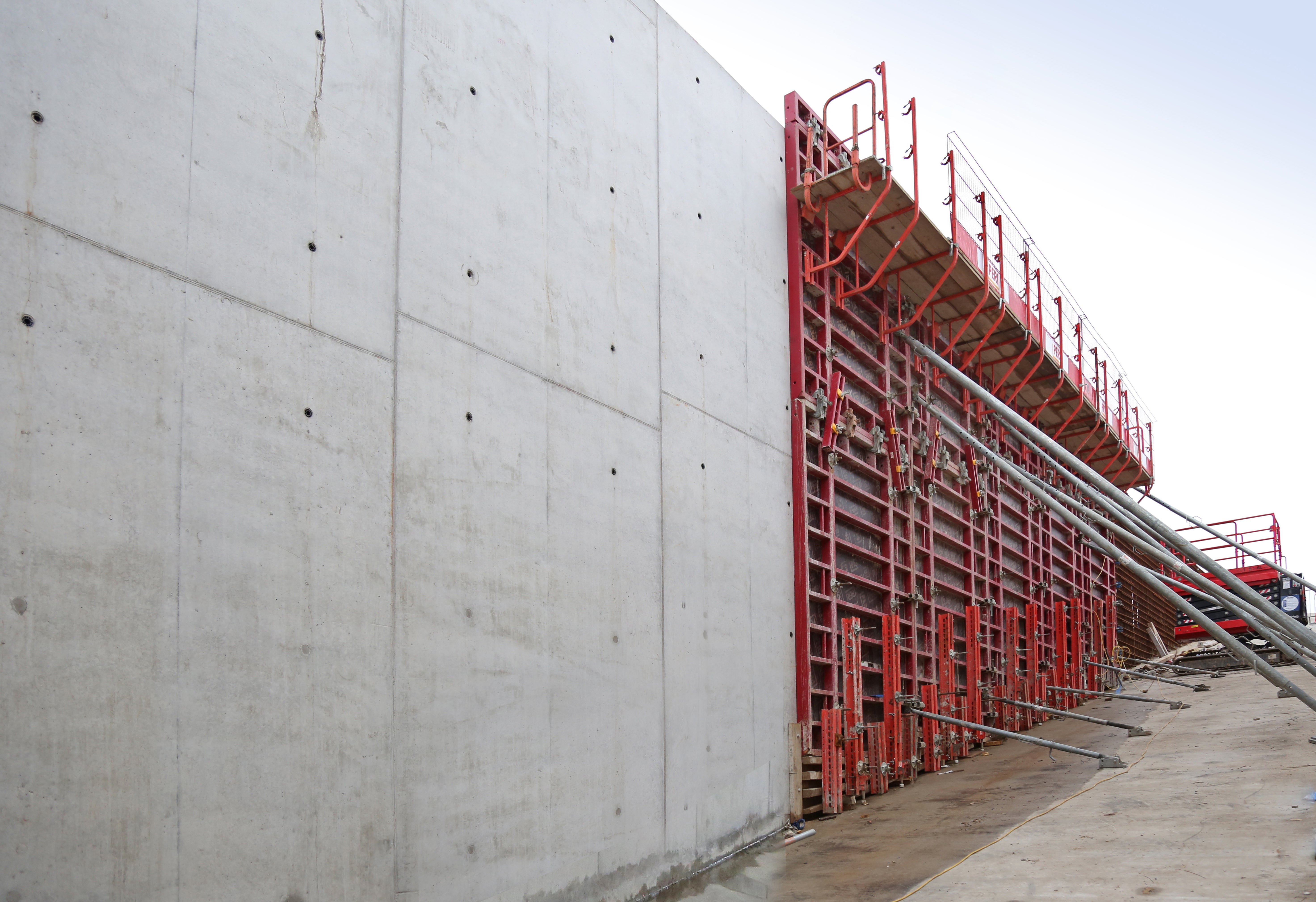

MAXIMO in use on the ROM Dome Tunnel
MAXIMO in use on the ROM Dome Tunnel
The MX Shaft Corner allows complete sets of shaft formwork to be moved quickly. Attaching and releasing is easily done from a safe position on the working level.
The wall thickness can be easily adjusted on the anchor by means of a cotter pin. The usual wall thicknesses are indicated through markings on the tie rod.

Product Data Sheet

Product Data Sheet

Technical specifications
System type
Panel Formwork
Material
Steel
Formlining
Finply 18 mm or all-plastic formlining
Installation time
Individual element - single and multiple use: 0.20 - 0.38 h/m², combination - single and multiple use: 0.15 - 0.23 h/m²
Anti-corrosion and surface coating
High level of corrosion protection thanks to internal strip galvanizing and cavity preservation. Powder coating of the element frames prevents concrete from sticking and makes cleaning easier. Hot-dip galvanized and powder-coated versions available
Fulfilled standard
Flatness according to DIN 18202, table 3, line 7
Technical specifications
System type
Panel Formwork
Material
Steel
Formlining
Finply 18 mm or all-plastic formlining
Installation time
Individual element - single and multiple use: 0.20 - 0.38 h/m², combination - single and multiple use: 0.15 - 0.23 h/m²
Anti-corrosion and surface coating
High level of corrosion protection thanks to internal strip galvanizing and cavity preservation. Powder coating of the element frames prevents concrete from sticking and makes cleaning easier. Hot-dip galvanized and powder-coated versions available
Fulfilled standard
Flatness according to DIN 18202, table 3, line 7
System accessory
Tie technology
One-sided MAXIMO anchor technology MX 15 and MX 18. Alternatively: Anchors that can be operated from both sides, such as DW 15 or DW 20.
Tie sealing technology
Screw plug system, rivet plug system, fiber concrete system DK, reliable closure technology with test certificates for a wide range of technical requirements and surface designs.
Connection technology
Main connecting part: BFD Alignment Coupler (flush, flush, tight), also suitable for stacking up to 5.40 m, compensations up to 10 cm, wall projections, corner solutions and end formwork.
Safety
MXK bracket system, MXP platform, MX counter railing holder.
Support
RS and trestle.
System accessory
Tie technology
One-sided MAXIMO anchor technology MX 15 and MX 18. Alternatively: Anchors that can be operated from both sides, such as DW 15 or DW 20.
Tie sealing technology
Screw plug system, rivet plug system, fiber concrete system DK, reliable closure technology with test certificates for a wide range of technical requirements and surface designs.
Connection technology
Main connecting part: BFD Alignment Coupler (flush, flush, tight), also suitable for stacking up to 5.40 m, compensations up to 10 cm, wall projections, corner solutions and end formwork.
Safety
MXK bracket system, MXP platform, MX counter railing holder.
Support
RS and trestle.
Standard applications
Compatible with
RUNDFLEX circular formwork, SRS circular steel column, TRIO panel formwork.
Standard applications
Compatible with
RUNDFLEX circular formwork, SRS circular steel column, TRIO panel formwork.
Show More
Show Less

Variations



  • Photo of the PERI Maximo Formwork system being used to form a concrete wall on a construction site.
    MAXIMO 300 / MAXIMO 360
    MAXIMO Panels, as well as internal corners and shaft elements, are available with heights of 3m and 3.6m. These additional panel heights are available on request and guarantee additional time savings for larger floor heights for example in high-quality residential construction or underground structures. The 3m high panels only require 2 anchors which ensures further saving of time. The MX 18 Anchor System is used for wall thicknesses of up to 60cm.
