Safe application
High level of safety using lightweight components and assembly on the ground
-
Easy installation
Once mounted the core components can remain on the formwork even during temporary storage
Applications
-

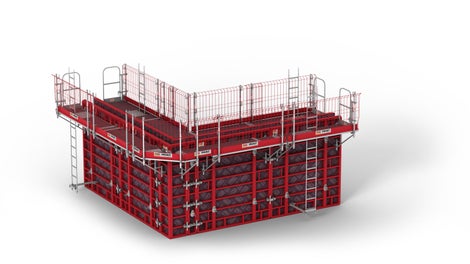

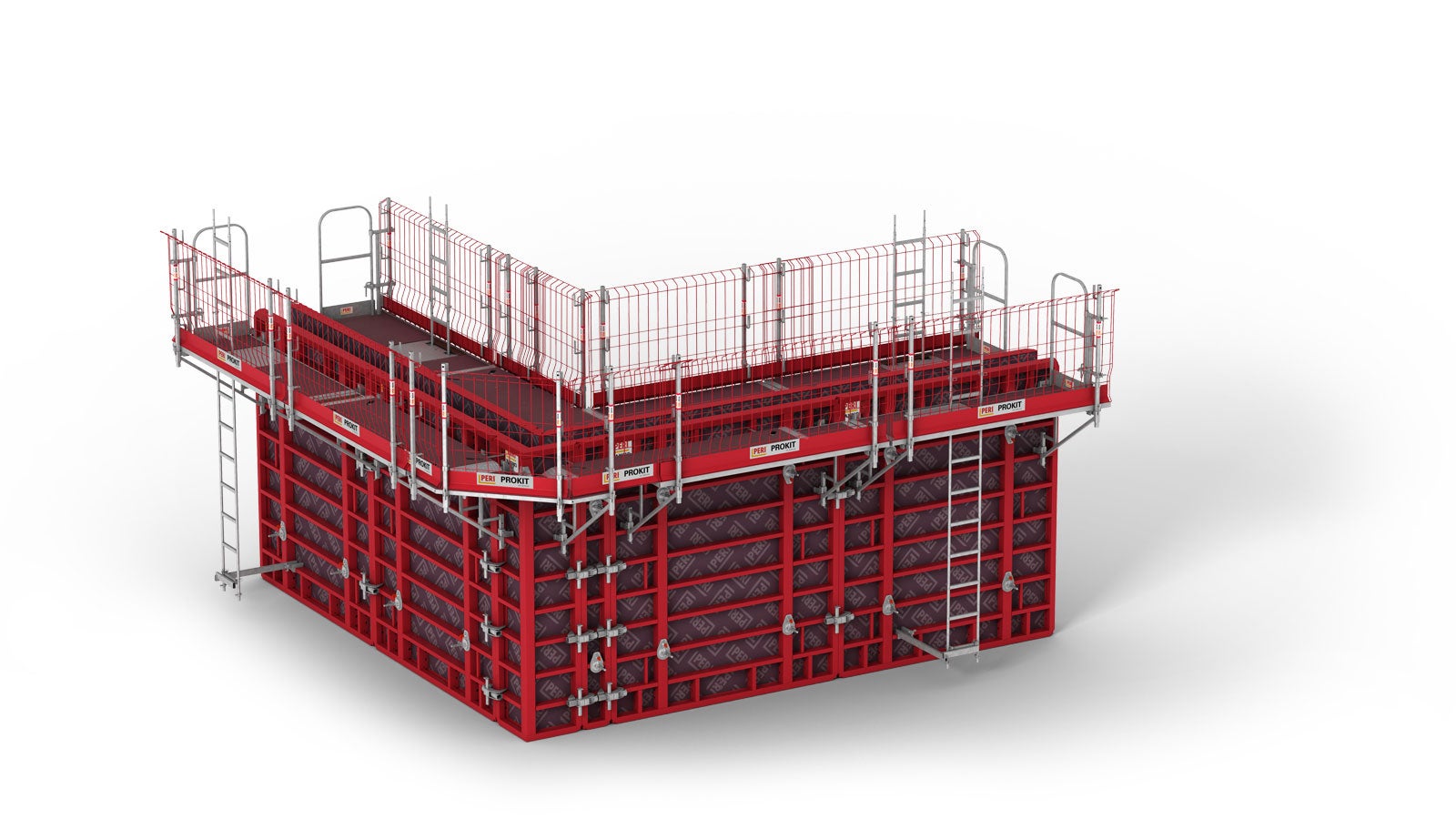

![The MXK Bracket System provides high level of safety whilst requiring little installation effort. The lightweight system components are manually-assembled on the ground.]( "MXK Bracket System")
The MXK Bracket System provides high level of safety whilst requiring low installation effort.
-

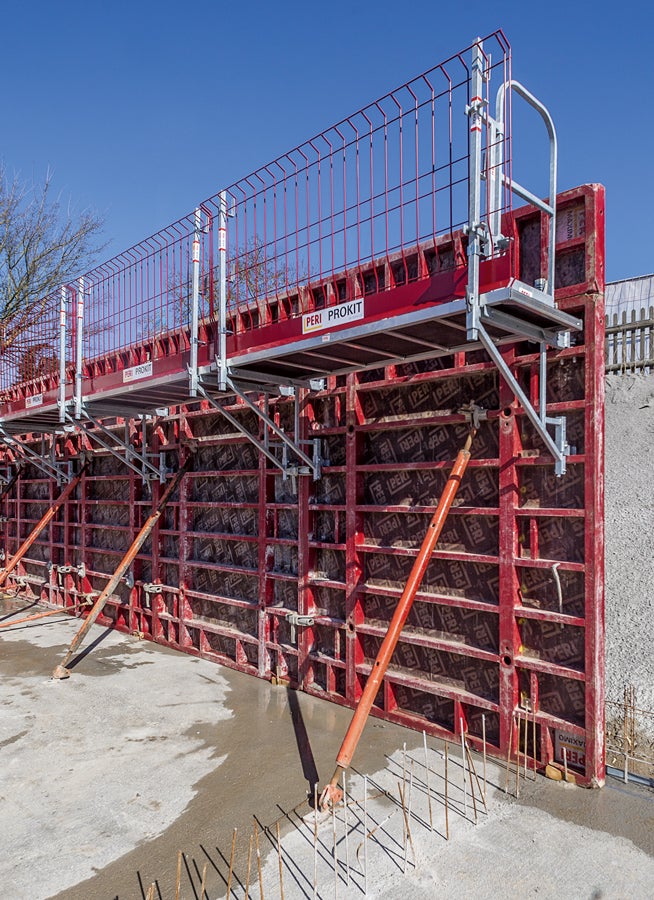

![Modular platform system for MAXIMO and TRIO with widths of 0.90 m, 1.20 m and 2.40 m]( "MXK Bracket System")
A modular platform system for use on MAXIMO and TRIO with widths of 0.9m, 1.2m and 2.4m
-

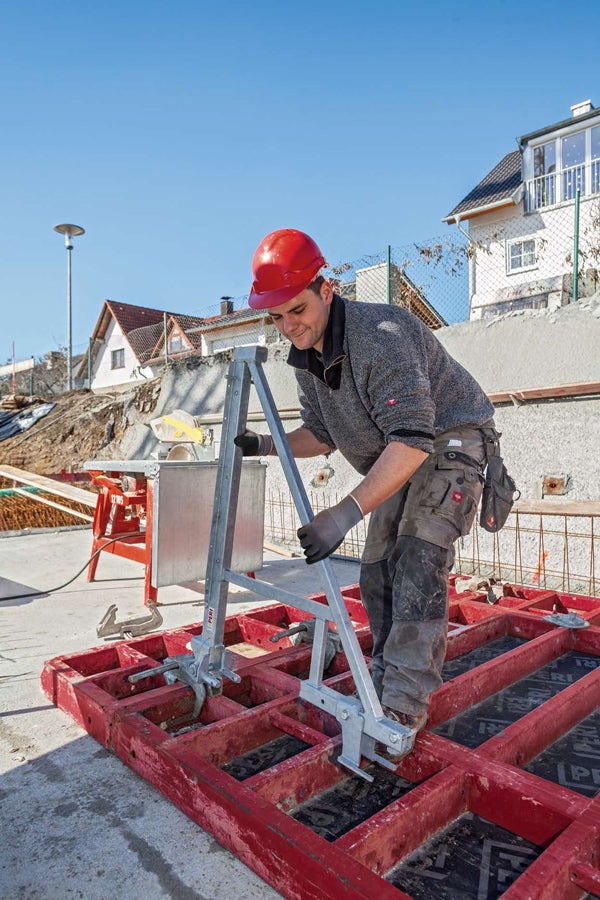

![The modular MXK System consists of lightweight, pre-assembled system components. Assembly can take place manually on the ground.]( "MXK Bracket System")
The modular MXK System consists of lightweight, pre-assembled system components. Assembly can take place manually on the ground.
Product Data Sheet
System type
Console system
Material
Steel brackets, aluminum and wood system decking
Anti-corrosion and surface coating
Hot-dip galvanized brackets
Fulfilled standard
Permissible load: 150 kg/m², load class 2 according to EN 12811-1
Weight
13,40 kg | 15,40 kg | 24,60 kg
System components for
External and internal corners, ladder access, end railing, horizontal use of panels
Compatible with
MAXIMO panel formwork, MAXIMO bracket system MXP, TRIO panel formwork, PROKIT EP 110 guardrails
Other
MXK-RS base bracket with push-pull prop connection for barrier-free walkways
Software
CAD
Apps and tools
PERI Extended Experience App, PERI QuickSolve Planner, formwork load calculator
Other
PERI InSite Construction
