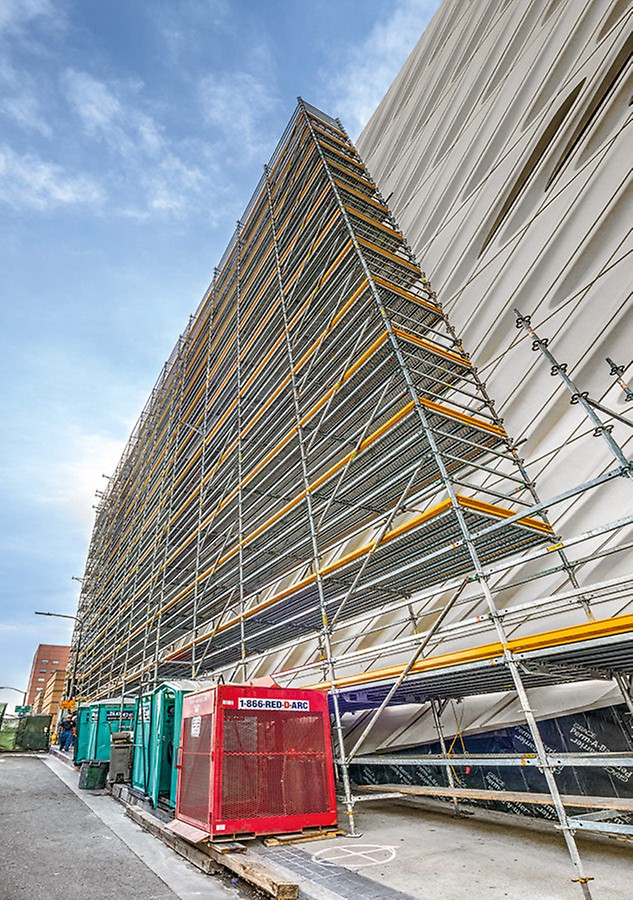

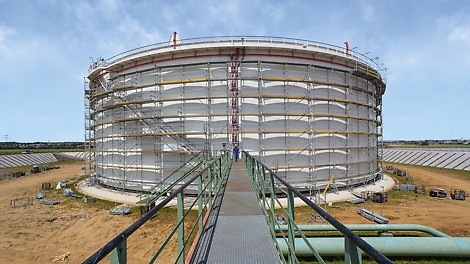

PERI UP Flex Façade Scaffolding in action
-

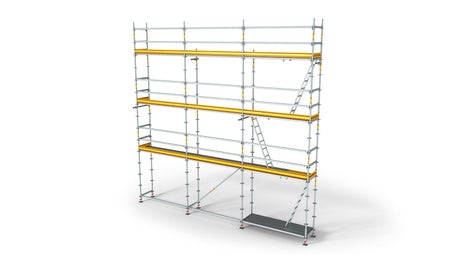

Extremely versatile

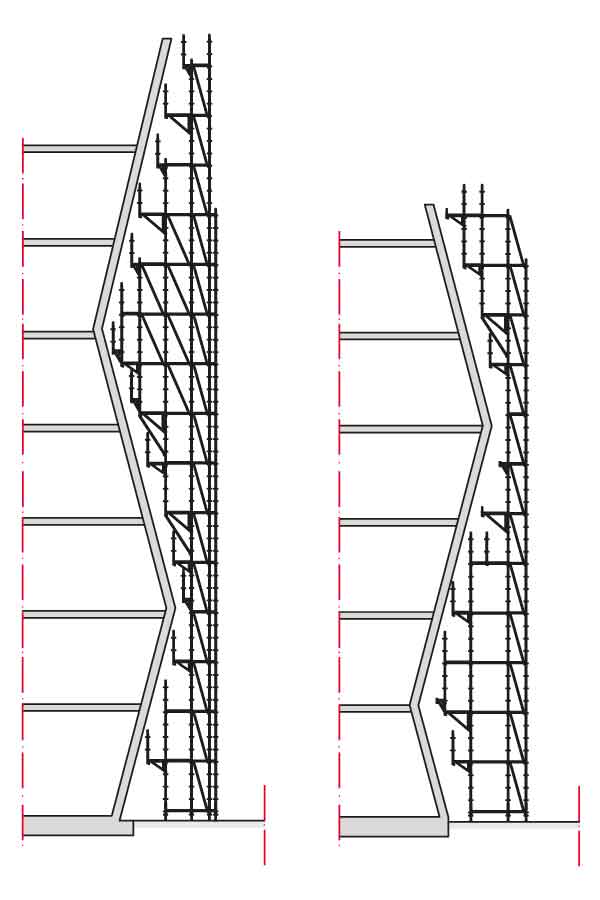

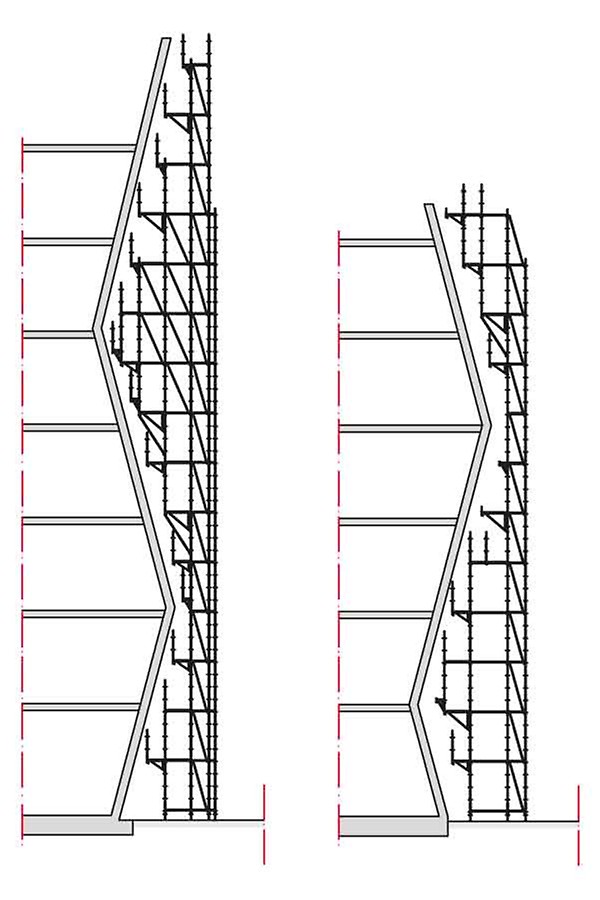

Adjustments are carried out in a uniform grid arrangement of 25cm which provides a high level of flexibility for complex façade scaffolding.
-

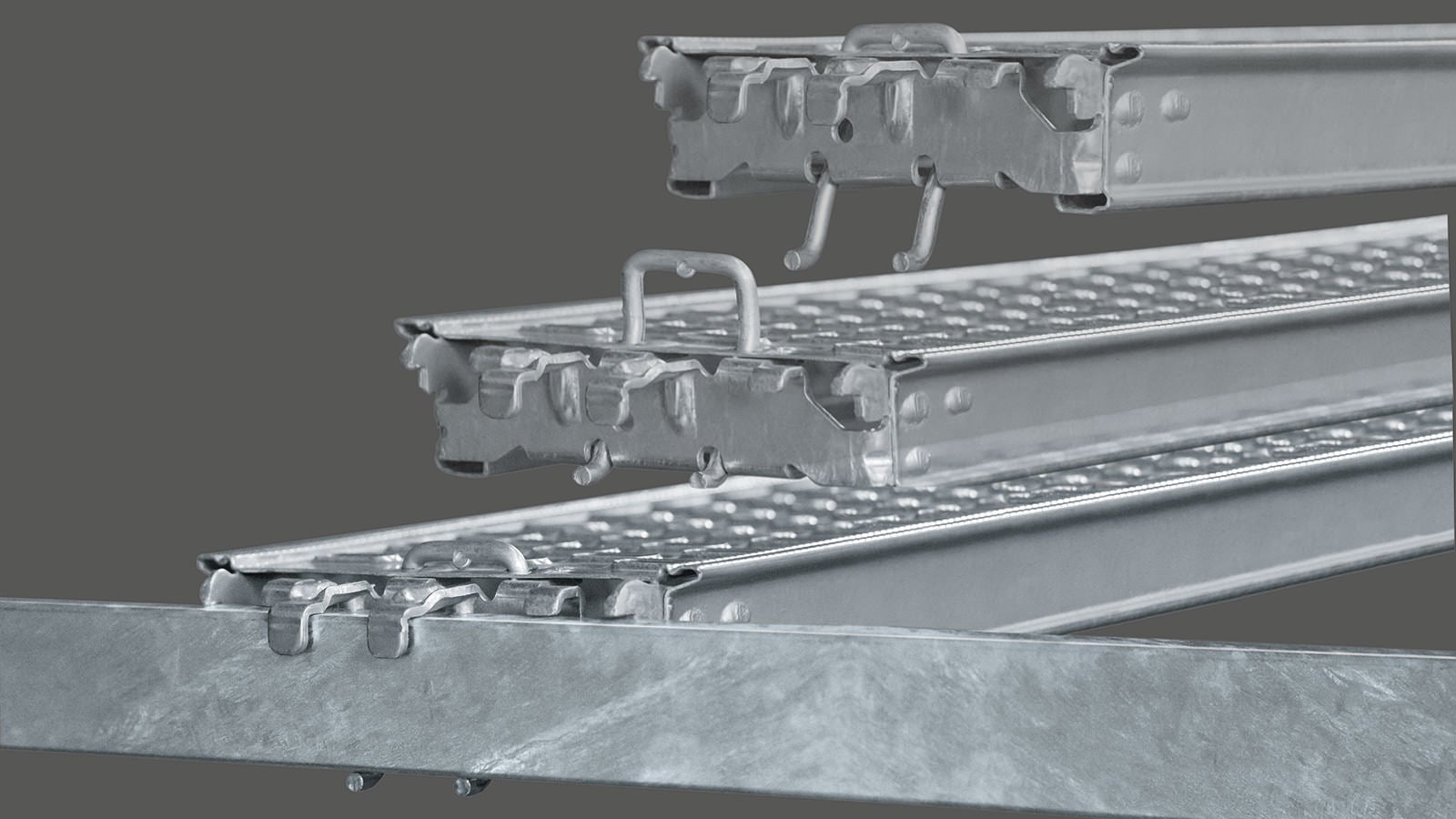

Gap-free decking
Ensure the safety of workers and the general public. Each bay has a gap-free deck thanks to the versatile system to bay widths, lengths and complex geometries.
-
High load-bearing capacity
Up to Load Class 6 depending on the assembly.
Product Data Sheet
Scaffold type
Façade
Type of use
Working scaffold, protective scaffold
Construction type
Steel
Width class
SW 03, SW 06, SW 09, SW 12, SW 15
Load class
LK 1, LK 2, LK 3, LK 4, LK 5, LK 6
Body heights
Up to 24 meters
Structure principle
Advanced assembly system, according to TRBS 2121-1
Norm
EN 12810 and EN 12811
Field length
50 cm, 75 cm, 100 cm, 125 cm, 150 cm, 200 cm, 250 cm, 300 cm
Permissible load
Load class 1 to 4 (0.75 kN/m² - 3.00 kN/m²); Load class 1 to 6 (0.75 kN/m² - 6.00 kN/m²)
Additional information
Interested in using PERI UP Flex Facade Scaffolding for your project?
Contact us – we will be happy to help you.
