RS Push-Pull Props in action
-

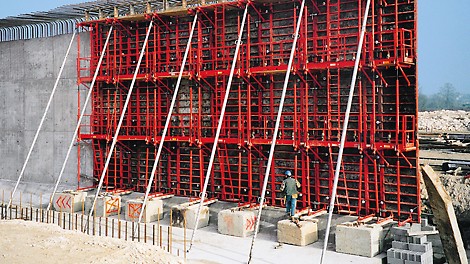

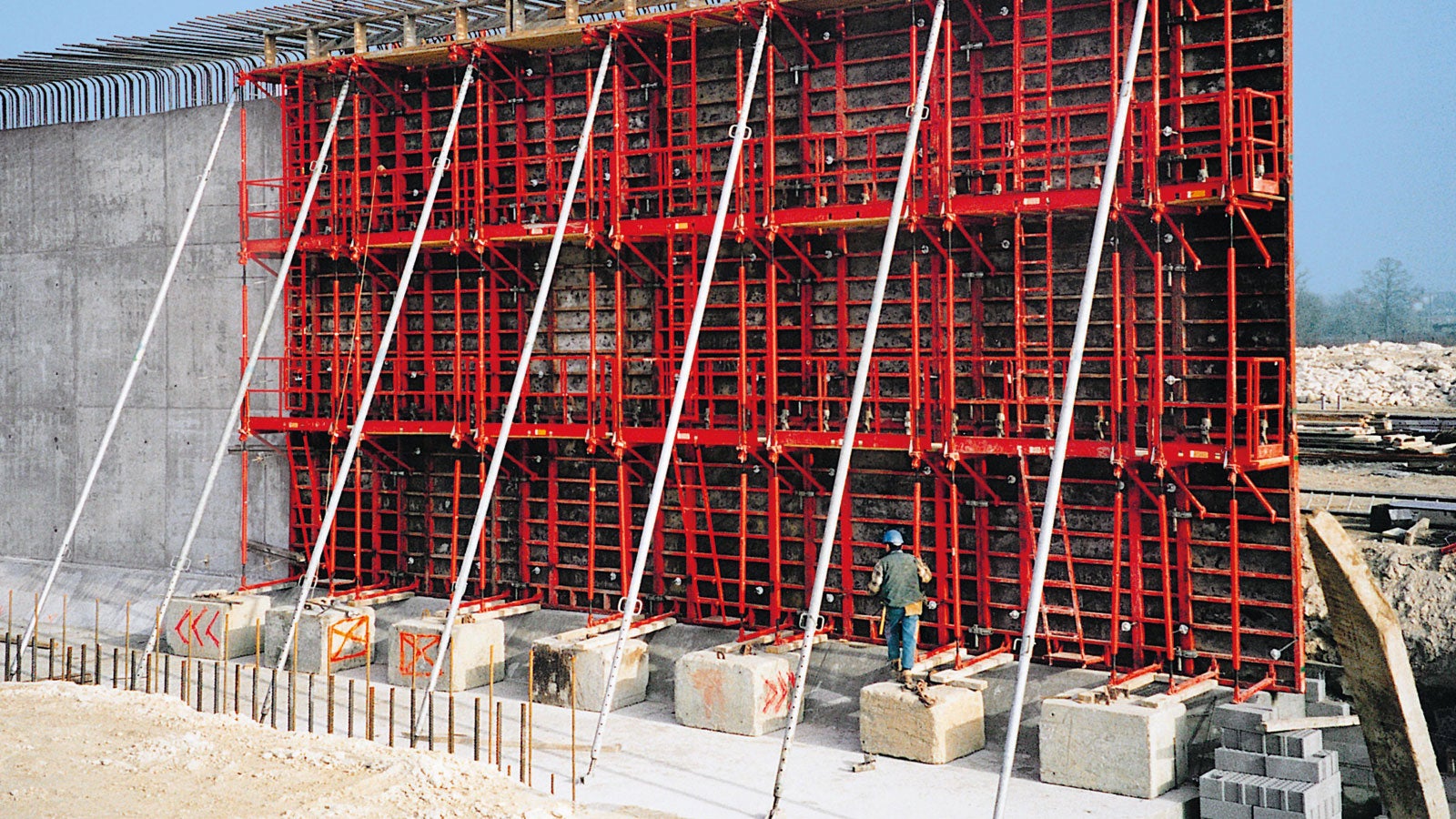

![RS Push-Pull Props: PERI push-pull props have been designed in particular regarding a long service life, low maintenance costs and easy handling.]( "RS Push-Pull Props - long service life")
Fast and safe handlingBoth large and fine adjustment of the props to achieve the appropriate length takes place safely within seconds from the installation area.
Galvanised tubes and threads ensure permanent protection against corrosion and ensure long service life.
-

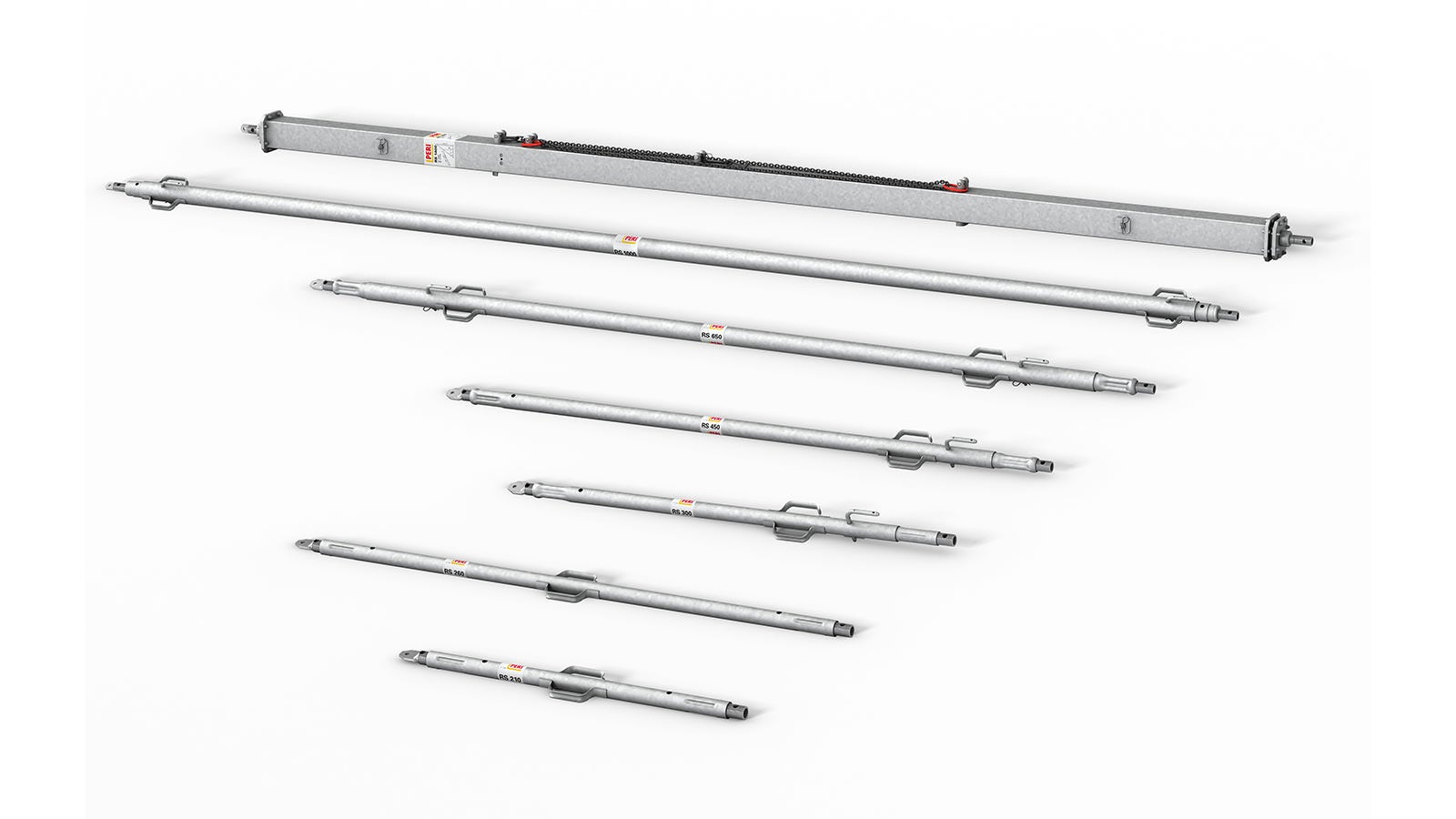

![RS Push-Pull Props: A complete programme, can be telescoped to reach a length of 14.00 m]( "RS Push-Pull Props")
Also suitable for load transfer of pre-fabricated elementsThe Push-Pull Prop Adapter and Quick Connector are a fast and safe solution for the support of pre-fabricated elements on site.
Product Data Sheet
System type
Props
Material
Steel
Anti-corrosion and surface coating
Hot-dip galvanizing
Load
Tensile and compressive force: Pulling and pushing force: up to 28 kN
Other
All RS push-pull props are connected to the ground using appropriate base plates. The base plate is equipped with two bolts and thus also enables the connection of a shorter push-pull prop as a cantilever.
Compatible with
All RS push-pull props are connected to the ground using appropriate base plates. The base plate is equipped with two bolts and thus also enables the connection of a shorter push-pull prop as a cantilever.
